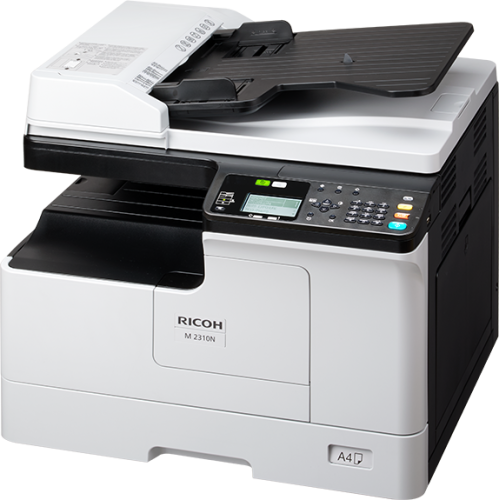

Ricoh M 2310N (423847) Printer Laser B/W MFP A3 23 ppm USB Ethernet LAN

M 2310N MAIN SPECIFICATIONS

GENERAL

Warm-up time

15 seconds

First copy speed: BW

6.4 seconds

Continuous output speed

23 ppm

Memory: standard

512 MB

Weight

24.4 kg

Dimensions: W x D x H

575 x 565 x 402 mm

Power source

220 – 240 V, 50 – 60 Hz

COPIER

Multiple copying

Up to 999 copies

Resolution: scanning

150 x 150 dpi (black and white)
200 x 200 dpi (greyscale, colour)

Resolution: printing

2,400 x 600 dpi

Zoom

Platen: From 25% to 400% in 1% steps
DF: From 25% to 200% in 1% steps

PRINTER

CPU

ARM926 360MHz

Printer language: standard

GDI

Print resolution: maximum

2,400 x 600 dpi with smoothing process

Network interface: standard

Ethernet 10 base-T⁄100 base-TX, USB 2.0

Mobile printing capability

RICOH M 2310 Mobile Print & Scan

Network protocol

TCP/IP (IP v4, IP v6)

Windows® environments

Windows® 10
Windows® 11
Windows® Server 2012
Windows® Server 2012R2
Windows® Server 2016
Windows® Server 2019
Windows® Server 2022

SCANNER

Scanning: B/W

25 ipm

Scanning: full colour

24 ipm

Resolution: maximum

600 dpi

File formats

Single Page TIFF
Single page JPEG
Single page PDF
Multi page TIFF
Multi page PDF

Scan modes

Mobile, Folder, USB, SMB

PAPER HANDLING

Recommended paper size

Standard paper tray(s): A3, A4, A5, B4, B5, Legal, Letter, Folio, 8K, 16K, Ledger
Bypass tray: A3, A4, A5, B4, B5, Legal, Folio, 8K, 16K, COM10, Monarch, DL Env, Ledger

Paper input: standard

250 sheets

Paper input: bypass (standard)

100 sheets

Paper input: maximum

600 sheets

Paper output: max.

100 sheets

Paper weight

Trays: 64 – 80 g̸ m²
Bypass: 52 – 216 g̸ m²
Duplex: 64 – 80 g̸ m²

Paper types

Plain paper
Envelope
Label paper
OHP
Thick paper
Thin paper

ECOLOGY

Power consumption: max.

< 1,500 W

Power consumption: ready

83.51 W

TEC*
* It is a reference value based on
the ENERGY STAR Ver.3.2 test
method.

0.35 kWh⁄week

INPUT/OUTPUT TRAYS AND
FINISHER OPTIONS:

ARDF, Platen cover, 1x 250-sheet paper feed unit

OTHER OPTIONS:

High cabinet

CONSUMABLES

Toner (regular yield)

6,000 prints (Consumable yield based on 5% coverage⁄A4)

Toner (high yield)

17,500 prints (Consumable yield based on 5% coverage⁄A4)
