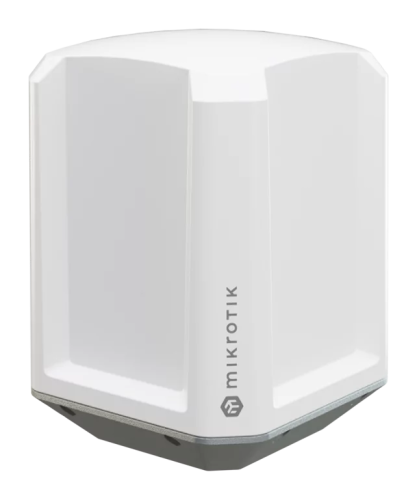

Mikrotik LAMP 5G R16 LAMPGM&RG520F-EU Outdoor Omnidirectional Router

Specifications

Product code

LAMPGM&RG520F-EU

Architecture

ARM 64bit

CPU

88F3720

CPU core count

2

CPU nominal frequency

800 MHz

CPU Threads count

2

RouterOS license

3

Operating System

RouterOS v7

Size of RAM

512 MB

Storage size

32 MB

Storage type

FLASH

MTBF

Approximately 200’000 hours at 25C

Tested ambient temperature

-40°C to 70°C

Powering

Number of DC inputs

1 (PoE-IN)

Max power consumption

10 W

Max power consumption without attachments

10 W

PoE in

802.3af/at

Cooling type

Passive

PoE in input Voltage

12-56 V

Mobile

3G Category

R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)

3G bands

1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)

LTE Category

20 (DL: 2.0 Gbps; UL: 200 Mbps)

MIMO DL

4×4

MIMO UL

2×2

LTE FDD bands

1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)

LTE TDD bands

38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
42 (3500 MHz)
43 (3700 MHz)

5G NSA FDD bands

1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)

5G NSA TDD bands

38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)

5G SA FDD bands

1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)

5G SA TDD bands

38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)

TAC

86945405

Ethernet

10/100/1000 Ethernet ports

1

Number of 1G Ethernet ports with Reverse PoE (PoE-in)

1

Peripherals

Number of SIM slots

1 Modem (Micro SIM)

Number of M.2 slots

1

Other

eSIM

Yes

Certification & Approvals

Certification

CE, EAC, ROHS

IP

67

Included parts

24 V 0.5 A power adapter
LAMP mount
Gigabit PoE injector

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
