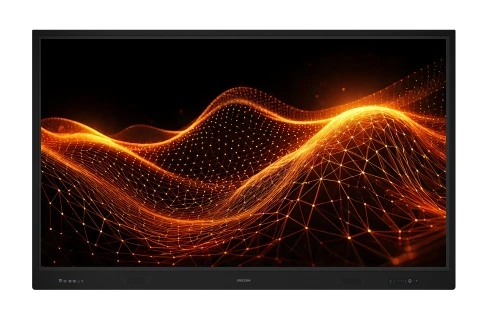

Ricoh A8610 (432702) Interactive Whiteboard 86” 3840×2160, Black

GENERAL

Front Interface

HDMI x1, USB C x1, USB A 3.0 x2, USB B 3.0 x1, MIC In x1

Rear Interface

USB A x3, USB C x1, USB B x3, HDMI In x2, DisplayPort x1, OPS Slot x1, RS232 x1, Audio Out x1, Line out or Headphone x1, SPDIF x1, HDMI Out x1, LAN 1000Base-T x2

Pre-installed app

Whiteboard, Picture-In-Picture, Eshare, Browser, Settings, Google Play Store, Google Calender, Files by Google, Search, Chrome, Gmail, Maps, YouTube, Drive, YT Music, Google TV, Meet, Photos

Dimensions: W x D x H (mm)

1,981 x 92 x 1,217

Package size: W x D x H (mm)

2,119 x 225 x 1,320

Weight (kg)

65

Housing material (face frame/back shell)

Aluminium/metal plate

Housing colour (face frame/back shell)

Black/black

VESA

4-M8 screw hole 800 x 400 mm

DISPLAY PANEL

Panel size: diagonal

86″ wide

Effective area: W x H (mm)

1,895 x 1,065

Resolution: maximum (Full HD)

3,840 x 2,160

Colours: maximum

1,070,000,000

Brightness: maximum (cd/m²)

400

Contrast ratio

4,000 : 1

Pixel pitch (mm)

0.4935 x 0.4935

Response: grey to grey (ms)

8

Refreshing frequency

60 Hz

Viewing angle: H/V (°)

178/178

LED lifetime

50,000 hours

TOUCH SYSTEM

Touch technology

Infrared Touch Frame/ Zero Bonding

Accuracy (mm in touchable area)

1

Multi touch

Win11/10/8/7/XP, Android

Single touch

Linux, Mac OS X, Chrome

Protection glass thickness: including AR coating (mm)

3.2

Maximum touch points

40

Coating

Anti-glare, Anti-fingerprint

Hardness

8 H

CONTROLLER/ELECTRICAL

OS

Android 13.0 EDLA

Audio output power

15 W x2

RAM

8 GB

ROM Storage

128 GB

WIFI

Wifi5 Module, Wifi6 Module

Bluetooth

BT 5.2

ACCESSORIES

Power cable, Touch pen x2, Read this first sheet, Quick guide sheet, Batteries AAAx2, Remote control, USB type C cable (2m), HDMI 2.0 cable (3m), USB A-B 3.0cable (3m), Plastic clamp (3pcs+3pcs)
