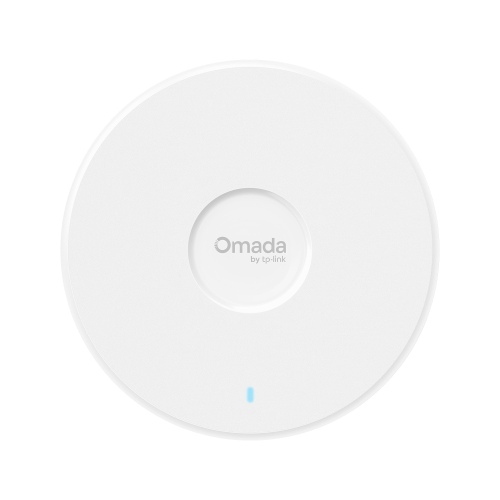

TP-Link Omada 7 Max – BE15000 8-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point

€326.00

Laost otsas

Kategooria: Arvuti aksesuaarid Bränd: TP-LINK

Kirjeldus
Lisainfo

EAP787

Omada 7 Max – BE15000 8-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.^§
Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance (AFC enabled via firmware update, planned for April, 2026).^#
Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.^†
1× 10G Port: Ensures fast connectivity throughout the network
Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.^‡
Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.^△
More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.

HARDWARE FEATURES

Interface

1× 10G/2.5G Ethernet Port

Button

Reset

Power Supply

• 802.3bt/at PoE
• 12V/2.5A DC
Note: DC Power adapter is not included.
DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.

Max. Power Consumption

• 29 W (For PoE);
• 24.5W (For DC)

Dimensions ( W x D x H )

8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)

Antenna

• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 4× 5.0 dBi
• 6 GHz: 2× 5.0 dBi

Bluetooth

1 × 5 dBi (peak gain), Internal antenna module
*Firmware update may be required.

Mounting

Ceiling / Wall / Junction Box Mounting (Kits Included)

MANAGEMENT FEATURES

Omada App

Yes

Centralized Management

• Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller

Cloud Access

Yes. Require the use of an Omada controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

Web-based Management

Yes

WIRELESS FEATURES

Coverage

2050 ft² (190 m²)*

Concurrent Clients

510+**

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency

6 GHz, 5 GHz, and 2.4 GHz

Signal Rate

688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)†

Wireless Functions

• 320 MHz Bandwidth‡
• MLO‡
• 4K-QAM‡
• Multi-RUs‡
• Seamless Roaming(802.11k/v/r)
• MU-MIMO‡
• Mesh△
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

Wireless Security

• Captive Portal Authentication△
• Access Control
• Mac Filter
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

4-25 dBm (2.4 GHz)
7-29 dBm (5 GHz, U-NII-1 & U-NII-3)
7-26 dBm (5 GHz, U-NII-2A)
7-24 dBm (5 GHz, U-NII-2C)
4-23 dBm (6 GHz)

OTHERS

Certification

• Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security
• FCC/CE/NCC/VCCI/JRF/BSMI

Package Content

• EAP787
• Installation Guide
• Ceiling/Wall/Junction Box Mounting Kit
Note: Power Adapter is NOT included.

Environment

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;

§Dedicated RF Scanning requires the use of an Omada controller (V6.0 or above).

#AFC availability varies by region or country. For supported areas, please visit: https://www.omadanetworks.com/support/faq/4373/

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.

△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.

*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Kaal	1.440 kg
Mõõtmed	25 × 4.4 × 25 cm
