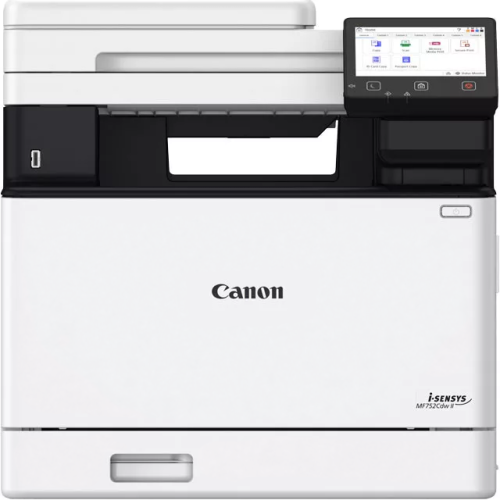

Canon i-SENSYS MF752Cdw II Printer Laser Colour MFP A4 33 ppm USB Ethernet LAN Wi-Fi

General Specifications

Machine Type

Colour Laser All-In-One

Available Functions

Print, Copy and Scan

Print Specifications

Print Speed

Single sided : Up to 33 ppm (A4)
Up to 60 ppm(A5-Landscape)
Double sided : Up to 29.5 ipm (A4)

Printing Method

Colour laser beam printing

Print Resolution

Up to 1200 x 1200 dpi

Warm-up Time

Approx. 14 seconds or less from power on

First-Print-Out Time

Colour approx.: 8.38 seconds or less
Mono approx.: 8.16 seconds or less

Printer Languages

UFRII, PCL5c, PCL6

Fonts

45 PCL fonts

Print Margins

5 mm-top, bottom, left and right
10 mm-top, bottom, left and right (Envelope)

Toner Saver Mode

Yes

Advanced Printing Features

Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
Microsoft Universal Print support
iOS: AirPrint, Canon PRINT app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT app, IPP everywhere

Copy Specifications

Copy Speed

Single sided (A4): Up to 33 ppm
Double sided (A4): Up to 29 ipm

First-Copy-Out Time

ADF (A4):
Colour Approx. 8.8 seconds or less
Mono Approx. 7.6 seconds or less
Platen (A4):
Colour Approx. 9.4 seconds or less
Mono Approx. 8.3 seconds or less

Copy Resolution

Up to 600 x 600 dpi

Copy Modes

Text/Photo/Map (Default),Text/Photo/Map (quality), Printed Image, Text

Double Sided Copying

2-sided to 2-sided (Automatic)

Multiple Copies

Up to 999 copies

Reduction / Enlargement

25-400% in 1% increments

Other Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Sharpness, Erase Frame, Copy ID Card, Copy Passport, Color Mode, Reserved copy

Scan Specifications

Standard Type

Colour

Scan Resolution

Optical: Up to 600 x 600 dpi
Enhanced: Up to 9600 x 9600 dpi

Scan Speed

Single sided mono: 50ipm (300x300dpi)
Single sided colour: 40ipm (300x300dpi)
Double sided mono: 100ipm (300x300dpi)
Double sided colour: 80ipm (300x300dpi)
Single sided mono: 40ipm (300x600dpi)
Single sided colour: 20ipm (300x600dpi)
Double sided mono: 80ipm (300x600dpi)
Double sided colour: 40ipm (300x600dpi)

Colour Scanning Depth

24 bit/24 bit (input/output)

Greyscales

256 levels

Compatibility

TWAIN , WIA, ICA

Maximum Scan Width

216mm

Scan to E-mail
Scan to PC
Scan to USB Memory Key
Scan to FTP

TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b

Scan to Cloud

TIFF/JPEG/PDF/PNG

Media Handling

Scanner Type

Platen, 2-sided ADF (single pass)

Paper Input (Standard)

250-sheet cassette
50-sheet multi-purpose tray
50-sheet ADF

Paper Input (Option)

550-sheet cassette

Maximum Paper Input Capacity

850-sheet cassette

Paper Output

150-sheet

Media Types

Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Label, Post card, Envelope

Media Sizes

Cassette (Standard):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5, Monarch),
Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch),
Custom sizes: Min 76.0 x 127 mm Max. 216.0 x 356.0 mm.

Cassette (Optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card,
Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.

ADF:
A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm Max 216.0 x 355.6 mm

Media Weights

Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Coated paper)
ADF: 50 to 105 g/m²

Double Sided Printing

Automatic
Cassette:
A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
Custom size — Min. 148 x 148 mm Max. 216 x 356 mm
60 to 200 g/m²

Interface & Software

Interface Type

USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

Operating System Compatibility

Windows® 11 / Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux

Network Protocol

Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan:
Push Scan: File: FTP (TCP/IP), SMB3.1.1 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP

Management:
SNMPv1, SNMPv3 (IPv4,IPv6)

Security:
TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES)

Software and Printer Management

MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
Application Library

General Features

Recommended Monthly Print Volume

750 — 4,000 pages per month

Duty Cycle

Max. 50,000 pages per month

Processor Speed

1200MHz

Memory

1GB

Storage

4GB

Control Panel

12.7 cm LCD Colour Touch Screen

Dimensions with Trays
(W x D x H)

425 mm x 461 mm x 430 mm

Installation Space
(W x D x H)

625 mm x 1,117 mm x 990 mm

Weight

Approx. 23.30 Kg

Power Source

220-240V(±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 1,380 W
Active printing: Approx. 700W
Standby: Approx. 24.0 W
Sleep mode: Approx. 1.0 W
Typical Electricity Consumption (TEC): 0.30 kWh/week (230V)
For detailed information relating to Lot26 regulation, please go to:
https://www.canon-europe.com/business/lot26/

Noise Levels

Sound Pressure :
Active: Simplex 51dB / Duplex 51dB (BW), 50dB (CL)
Standby: 29 dB

Sound Power:
Active: 65dB or less
Standby: 41dB or less

Consumables

Cartridges

Cartridge 069 Black (2,100 pages)
Cartridge 069H Black (7,600 pages)
Cartridge 069 Cyan (1,900 pages)
Cartridge 069H Cyan (5,500 pages)
Cartridge 069 Magenta (1,900 pages)
Cartridge 069H Magenta (5,500 pages)
Cartridge 069 Yellow (1,900 pages)
Cartridge 069H Yellow (5,500 pages)

Accessories & Options

Items

PAPER FEEDER PF-K1 (550-sheet cassette) (Option)
