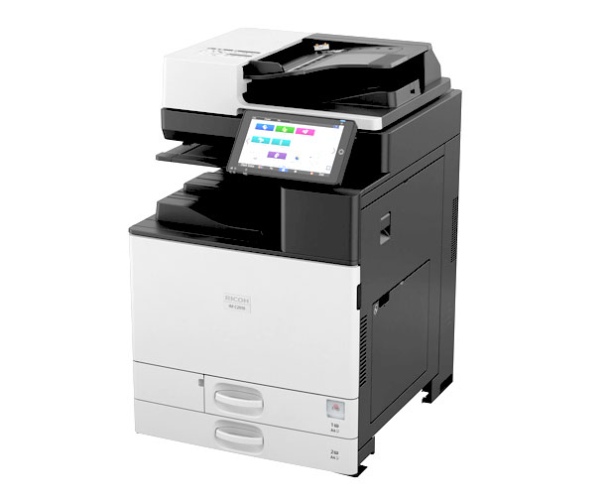

Ricoh IM C6010 (419337) Printer Laser Colour MFP SRA3 60 ppm USB Ethernet LAN

Engine/General Specifications

Configuration

Console

Printing Process

4-Drum Method

Control Panel

10.1″ Smart Operation Panel

Color/Black & White

Color

Output Speed Copy/Print

60 ppm B&W & FC (LTR)

First Page Out Time

2.4 seconds B&W
3.8 seconds Color

Warm-Up Time

24 seconds

Resolution

600 dpi

System Memory

4 GB RAM Mainframe + 4 GB RAM Panel/256 GB SSD

Maximum Copy Quantity

Up to 999 copies

Duplexing

Automatic (Standard)

Document Feeder Type

Single Pass Document Feeder (SPDF)

Single Pass Document Feeder (SPDF)

Original Capacity: 220 sheets
Original Size: 2″ x 3.5″ — 11.7″ x 17″ (A6-A3, B8-B4)
Paper Weight: Simplex/Duplex: 38 – 220 g/m2 (A6 or larger); 64 – 220g/m2 (smaller than A6) (need to be updated)

Zoom Range

25% — 400% in 1% increments

Supported Paper Sizes

1st Paper Tray: 8.5″ x 11″ (A4)
2nd Paper Tray: 5.5″ x 8″ — 12″ x 18″ (A6-A3, B4-B6), Envelopes
Bypass: Up to 12″ x 18″, Envelopes
Custom Sizes: Width: 3.5″ — 12.6″ (90 — 320 mm), Length: 5.8″ — 49.6″ (148 — 1260 mm)

Supported Paper Weights

Standard Trays: 16 — 80 lb./166 lb. Index (60 — 300 g/m2)
Bypass Tray: 14 — 80 lb./166 lb. Index (52 — 300 g/m2)
Duplex Unit: 14 — 45lb./142 lb. Index (52 — 169 g/m2)

Supported Paper Types

Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Coated, Envelope, Label, Gloss

Standard Paper Capacity

1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray)

Maximum Paper Capacity

4,700 sheets (w/Tandem LCT + Side LCT)

Standard Output Capacity

500 sheets 8.5″ x 11″ (A4) or smaller; 250 sheets (B4) or larger

Maximum Output Capacity

3,625 sheets

Maximum Monthly Volume

50000

Power Source

120V — 127V, 60Hz

Typical Electricity Consumption (TEC)

0.69 kWh/week
TEC value is measured based on the ENERGY STAR Ver.3.0 test method.

Power Consumption

Less than 1,584 W; Sleep Mode: 0.3W

EPEAT Status

Gold

Dimensions W x D x H

23.0″ x 27.0″ x 37.9″ (587 mm x 685 mm x 963 mm)

Weight

222.2 lbs/100.8 kg

Printer Specifications

Processor Speed

Intel Apollo Lake 1.6 GHz

Interfaces

Standard: Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B
Option: Wireless LAN (IEEE 802.11a/b/g/n/ac)

Network Protocol

TCP/IP (IPv4, IPv6)

Supported Operating Systems

Windows® 8.1/10/11/Server2012/Server2012R2/Server 2016/Server 2019/Server 2022; Unix: Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX, Mac OS X v.10.15 or later, SAP R/3, SAP S/4, IBM iSeries AS/400-using OS/400 Host Print Transform

Device Management Utilities

Web Image Monitor, @Remote

Printer Languages

Standard: PCL5c, PCL6, PostScript®3™ Emulation, PDF Direct Print Emulation
Optional: Genuine Adobe® PostScript®3™, Adobe® PDF Direct Print

Font Support

Standard: PCL/PS 3 Emulation: 80 Roman fonts + 13 International fonts
Optional: Genuine Adobe® PostScript®3™: 136 Roman fonts

Print Resolution

Up to 1200 x 1200 dpi

Mobile Printing Support

Apple AirPrint™, Mopria, Ricoh Smart Device Connector

Security Features

DataOverwriteSecurity System (DOSS) with optional HDD, SSD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more

Scanner Specifications

Scan Speed (B&W & Full Color)

150 ipm (simplex)/300 ipm (duplex)

Scanning Resolution

Up to 1200 dpi

Scan Area

Up to 11″ x 17″ (297 — 432 mm)

File Formats

Single Page: TIFF, JPEG, PDF, PDF/A, High Compression PDF, encryption PDF, OCR*
Multi Page: TIFF, PDF (Default), PDF/A, High Compression PDF, encryption PDF, OCR*

Scan Modes

E-mail, Folder, USB, FTP

Footnotes

*Requires optional OCR Unit Type M52

Document Server Specifications

Maximum Stored Documents

3000

Maximum Pages/Document

2000

Maximum Page Capacity

9000

Max Number of Folders

200

Fax Specifications

Fax Standard/Optional

Optional

Type

ITU-T (CCITT) G3, maximum 3 lines

Circuit

PSTN, PBX

Fax Resolution

Standard: 8 x 3.85 line/mm, 200 x 100 dpi
Optional: 16 x 15.4 line/mm, 400 x 400 dpi

Compression Method

MH, MR, MMR, JBIG

Scanning Speed

94 spm (A4/LT LEF Image Rotation)

Modem Speed

33.6 Kbps

Transmission Speed

3 seconds (200 x 100 dpi, JBIG, ITUT #1 chart TTI off, memory transmission)

Memory

Standard: 4 MB (approx. 320 pages)
Optional: 60 MB (approx. 4,800 pages) with optional SAF memory

Max Auto Dials

2,000 Quick/Speed Dial numbers

Group Dials

100 Group Dial numbers
